Atibal Optics
TRU-LOC
Tension Rail Unit - Lock Over Cutout34mm Scope Mount1.26"Centerline Height
8.5 ozWeight (w/ Board)
7.2 ozWeight (w/o Board)
34mmRing Size
360° View
Loading 0%
Recommended Use: Long Range / Hunting / AR Platform
Features
Diving Board (Optional)
Adds a cantilevered extension for perfect eye relief adjustment.
Robust 3 Recoil Lug Bar Design
Triple recoil lug bar construction provides maximum strength and stability under heavy recoil.
34mm Ring Size
Fits 34mm scope tubes for a secure, solid hold.
Interlock Clamp
Innovative interlock clamp design provides superior clamping force and repeatable return-to-zero.
In The Box
Diving Board (Optional)
1x Torx Key
2x Torx T15 Screws
Specifications
Ring Size34mm
MaterialAluminum 6063-T6
FinishHard Coat Anodized
Centerline Height1.87"
Weight (with Diving Board)8.5 oz
Weight (without Diving Board)7.2 oz

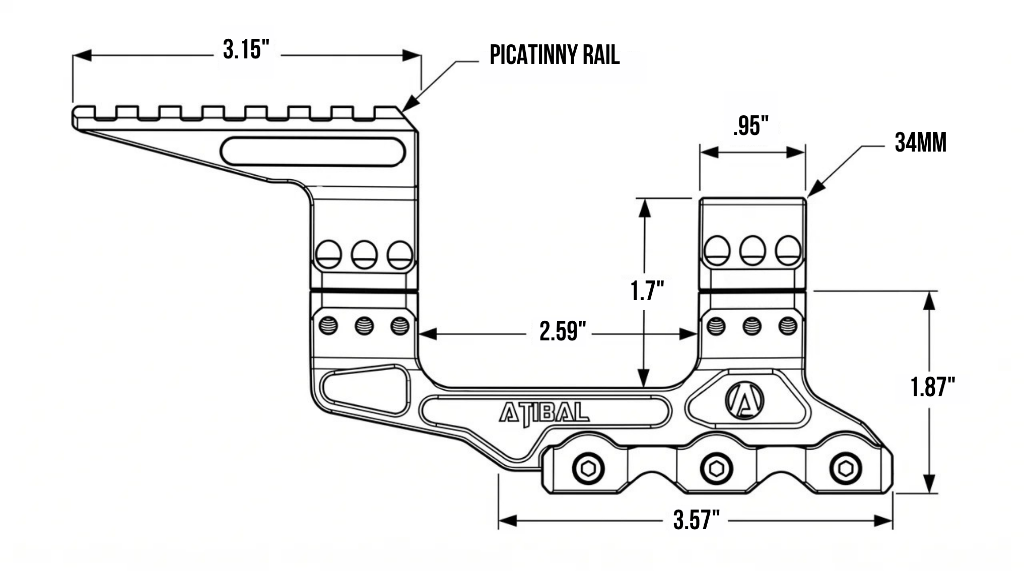

3.15"Diving Board Length
2.59"Ring Spacing
3.57"Base Length
1.7"Ring Height
.95"Ring Width
1.87"Centerline Height
34mmRing Size
