Atibal X LogoAtibal

X 1–10×30

FFP
Rapid Engagement Mount (REM) 35MM
Back Order

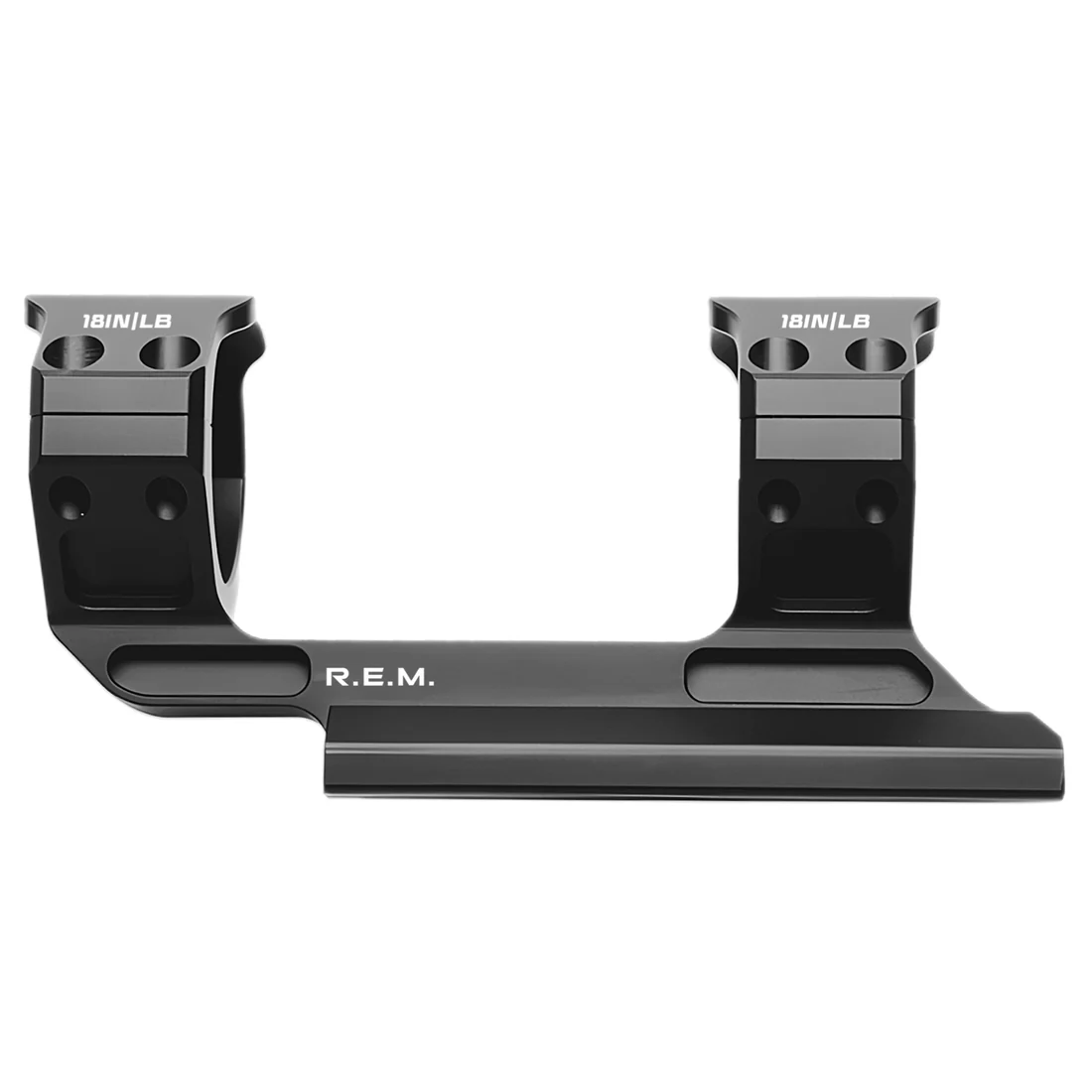

Rapid Engagement Mount (REM) 35MM

The Rapid Engagement Mount (REM) is engineered for precision and reliability, offering a rock-solid mounting solution for your optic. Secure your scope with confidence.

$120 Value — Free·Included with all backorder 1-10x's
ETA10/15
Magnification1–10×
Focal PlaneFFP
Objective30mm
Weight21.1 oz
Reticle
Reticle
FFP — Reticle scales with magnification
Target

Not to scale. Reference only.

10×

Reticle Options

XV2 Reticle

XV2 Reticle

The XV2 reticle features a bold outer illuminated ring at true 1x for rapid target acquisition, paired with a hashmarked inner crosshair that utilizes MIL-based subtensions for accurate ranging, holdover, and windage calls. Its Christmas tree-style layout includes a precise 0.25 MRAD center aiming dot and secondary hold points, giving shooters precise control for confident long-range engagements.

Semi Diamond Reticle

Semi Diamond Reticle

At true 1X magnification, the segmented diamond design enables rapid target framing—ideal for engaging silhouette targets with speed and precision in close-quarters scenarios. This intuitive aiming aid draws the eye naturally to center, minimizing target acquisition time when split seconds matter most.

Plumb Competition Reticle

Plumb Competition Reticle

The Plumb Precision Competition Reticle or “Plumb Reticle” will provide users with a new reticle pattern for rapid and accurate engagement of unknown distance targets. This reticle pattern is specifically designed to provide a more accurate and capable shooter in less time. It also allows for experienced shooters to engage targets in complex multi distance environments more effectively. The “Plumb” reticle will allow the end user to engage targets in a close range or reflex mode, therefore capitalizing on the one power capabilities of modern variable power optics. Targets that are at intermediate ranges, from 100 to 600 meters, can be rapidly and accurately engaged using our proprietary technology. The Reticle also allows for deliberate and highly accurate shots based on the known size of the target.

Reticle Dimensions

Reticle TypeXV2.1 MIL — FFP (Laser Etched)
IlluminationDual LEDs · 6 brightness settings
Adj. Per Click1/10 MIL
Max Elevation54 MIL
Max Windage52 MIL
Field of View101 ft @ 1× — 10.1 ft @ 10×
Eye Relief3.6 – 6.5 inches
ParallaxFixed
RECOILPROOF
JJapan ED Glass
7N₂NITROGENFOGPROOF
H2OPROOF
DUAL LEDDAYLIGHT

In The Box

Throw Lever
Cleaning Cloth
Sunshade
CR2032 Battery
Flip-up Lens Caps
Instruction Manual

Features

Lifetime Warranty
First Focal Plane (FFP)
Dual LEDs for True Daylight Bright Illumination
Laser Etched Reticle
6 Illuminated Reticle Brightness Settings
Japanese ED glass with fully multi-coated lens
Target turrets for windage and elevation adjustment
Fog Proof (nitrogen purged)
Waterproof & Shock Proof
MIL Reticle (1/10 MIL per click)
6061-T6 aircraft grade aluminum

Specifications

Magnification1–10×
Length10.1"
Objective Lens30mm
Eye Relief3.6 – 6.5 inches
Field of View101 – 10.1 ft
Tube Size35mm
Turret StyleTarget Turrets
Adj. Per Click1/10 MIL
Max Elevation54 MIL
Max Windage52 MIL
Weight21.1 oz (no mount)
Construction6061-T6 aluminum
Atibal Lifetime Warranty
